Retaining Ring Overview
Chaudhary Impex manufactures precision retaining rings and snap rings for mechanical assemblies. These components provide secure axial positioning of parts on shafts or within bores while allowing for easy installation and removal during assembly or maintenance.
Ring Types

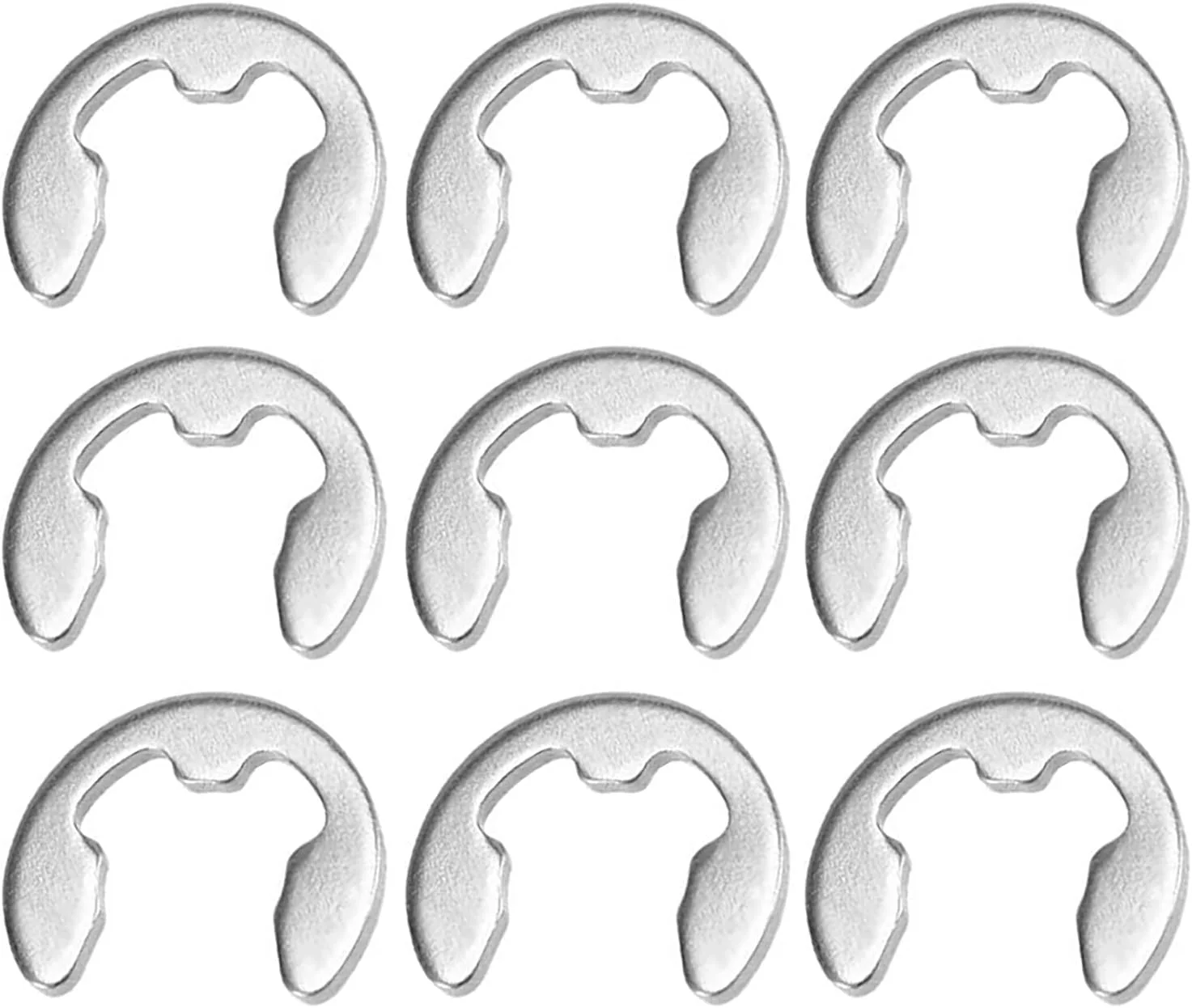

External Snap Rings
Shaft mounting
Tapered section
Standard & heavy duty

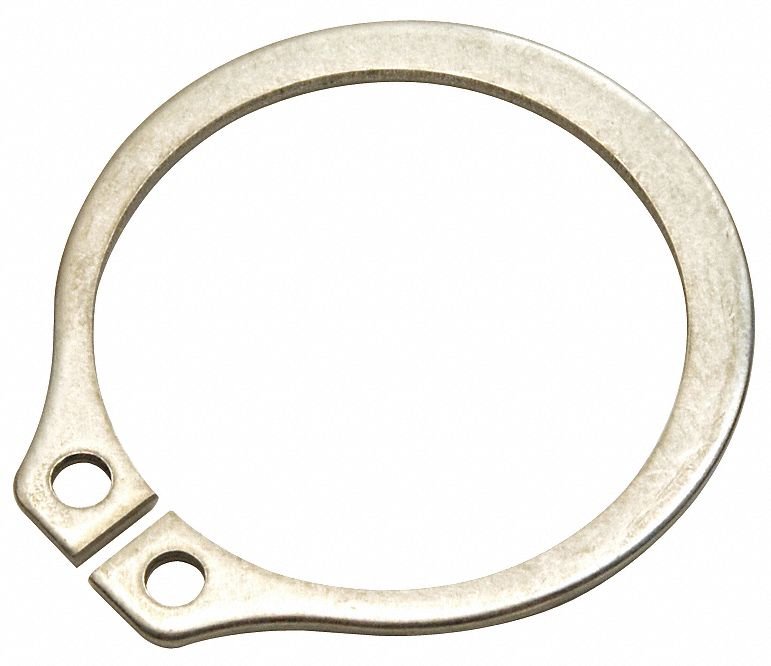

Internal Snap Rings
Bore mounting
Inverted design
Housing retention

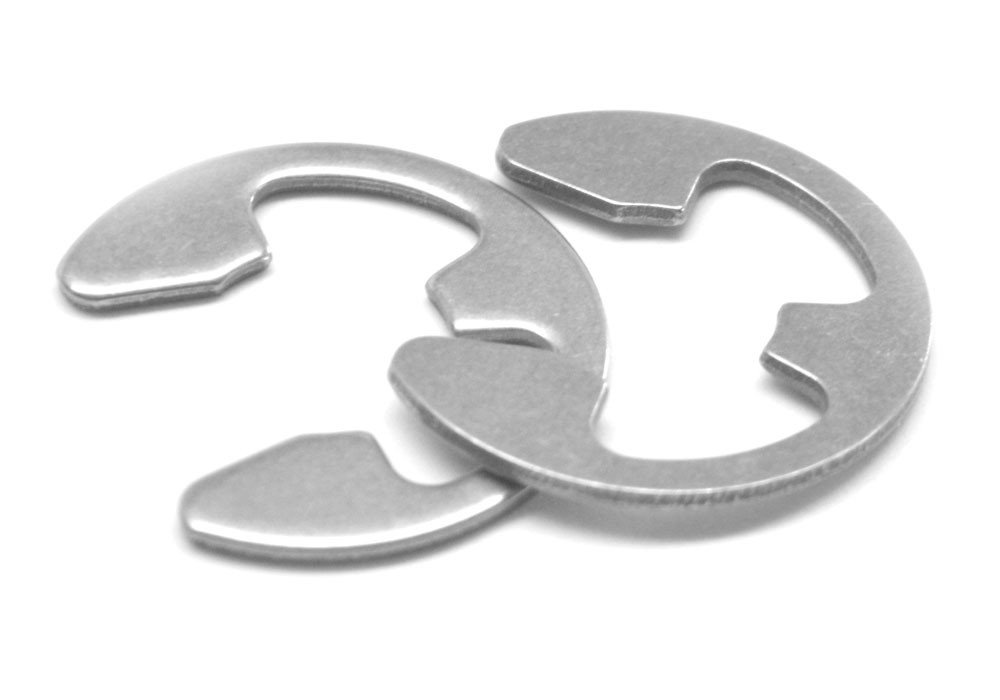

E-Clips (E-Rings)
Push-on design
Easy installation
Low profile

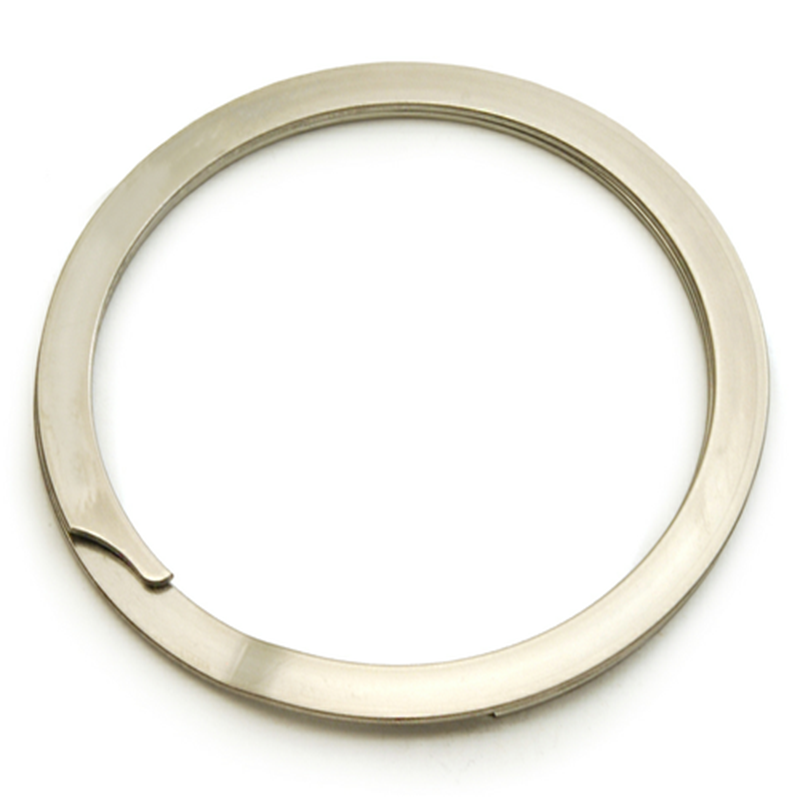

Spiral Retaining Rings
Continuous coil
No ears or lugs
360° contact

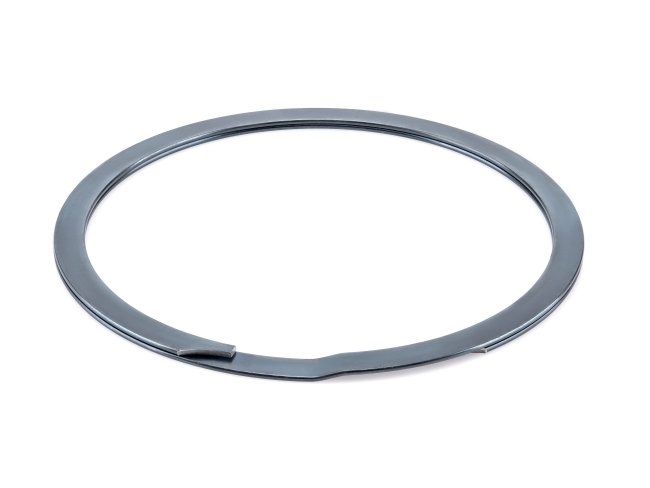

Wave Retaining Rings
Axial preload
Spring action
Bearing retention
Constant Section Rings
Uniform thickness
High strength
Precision applications
Material Specifications
| Material Grade | Tensile Strength (MPa) | Hardness (HRC) | Temp Range (°C) | Applications |
|---|---|---|---|---|
| Carbon Steel (1070/1075) | 1000-1200 | 42-52 | -40 to 120 | General industrial, machinery |
| Stainless Steel 302 | 520-750 | 35-45 | -200 to 300 | Corrosive environments, food processing |
| Stainless Steel 316 | 515-690 | 35-45 | -200 to 400 | Marine, chemical, pharmaceutical |
| Beryllium Copper | 1200-1380 | 38-42 | -200 to 200 | Non-magnetic, electronics, MRI equipment |
| Spring Steel (17-7 PH) | 1310-1520 | 43-47 | -100 to 300 | High stress, aerospace applications |
| Inconel 718 | 1275-1380 | 35-43 | -250 to 700 | High temperature, aerospace engines |
Standard Dimensions
| Type | Shaft/Bore Ø Range | Groove Width | Standard | Thrust Load (N) |
|---|---|---|---|---|
| External Snap Ring | 3mm - 300mm | 0.4 - 4.0mm | DIN 471 | 50 - 50000 |
| Internal Snap Ring | 8mm - 300mm | 0.6 - 4.0mm | DIN 472 | 40 - 45000 |
| E-Clips | 1.5mm - 50mm | Grooveless | DIN 6799 | 10 - 5000 |
| Spiral Rings (Ext) | 3mm - 100mm | 1.0 - 2.5mm | DIN 7993 | |
| Spiral Rings (Int) | 10mm - 100mm | 1.0 - 2.5mm | DIN 7994 |
Materials & Properties
Carbon Spring Steel
DIN 17222, high carbon, general purpose
Stainless Steel 1.4310
Corrosion resistant, 301 equivalent
Stainless Steel 1.4568
High strength, 17-7 PH equivalent
Beryllium Copper
Non-magnetic, electrical applications
Phosphor Bronze
Marine environments, conductivity
Inconel
High temperature, aerospace
Load Capacity
Thrust load capacity for standard carbon steel rings:
| Shaft Diameter | Ring Thickness | Thrust Load (N)* | Type |
|---|---|---|---|
| 10mm | 1.0mm | 1,180 | External |
| 20mm | 1.2mm | 3,530 | External |
| 30mm | 1.5mm | 6,670 | External |
| 50mm | 2.0mm | 15,700 | External |
| 80mm | 3.0mm | 35,300 | External |
* Based on 150 MPa bearing stress, safety factor 2
Installation Guidelines
Installation Tools:
- External Rings: External ring pliers, expanding type
- Internal Rings: Internal ring pliers, contracting type
- E-Clips: Needle-nose pliers, push-on installation
- Spiral Rings: No special tools, wind into groove
Safety Considerations:
- Always use proper safety glasses
- Ensure ring tips are properly seated in plier grooves
- Control ring during installation to prevent flying
- Inspect rings for damage before installation
Groove Specifications
| Ring Type | Groove Width Tolerance | Groove Depth | Corner Radius |
|---|---|---|---|
| External DIN 471 | +0.05/+0.15 | Ring thickness + 0.1mm | 0.2 - 0.4mm |
| Internal DIN 472 | +0.05/+0.15 | Ring thickness + 0.1mm | 0.2 - 0.4mm |
| E-Clips DIN 6799 | No groove required | - | - |
| Spiral Rings | +0.1/+0.2 | Ring thickness + 0.05mm | 0.1 - 0.2mm |
Applications
Automotive
Transmission assemblies
Steering components
Suspension parts
Industrial Equipment
Gear boxes
Motor assemblies
Pump components
Aerospace
Landing gear
Flight controls
Engine accessories
Agricultural
Tractor components
Implement drives
Harvester assemblies
Construction Equipment
Hydraulic cylinders
Track systems
Excavator components
Machine Tools
Spindle assemblies
Tool changers
Feed mechanisms
Design Guidelines
- Ring Selection: Choose based on space constraints and load requirements
- Groove Design: Follow standard specifications for proper fit
- Material Selection: Consider corrosion, temperature, and strength requirements
- Installation Access: Ensure adequate clearance for installation tools
- Retained Part: Provide chamfer or radius to ease ring installation
- Safety Factor: Typically 2:1 to 4:1 for static loads
Quality Standards
DIN 471/472: German standard for circlips
ANSI B27.7: American standard for retaining rings
JIS B2804: Japanese standard for snap rings
ISO 3603/3604: International standard for circlips
MIL-STD: Military specifications for aerospace
IATF 16949: Automotive quality management
Custom Solutions
Special Materials
Exotic alloys, custom compositions
Non-Standard Dimensions
Custom sizes, special tolerances
Special Coatings
Plating, anodizing, passivation
Modified Designs
Unique configurations, special features
