Plug Products Overview
Chaudhary Impex manufactures precision plugs for sealing threaded holes, test ports, and temporary closures. Our plugs are available in various materials and configurations for hydraulic, pneumatic, and general sealing applications.
Plug Types

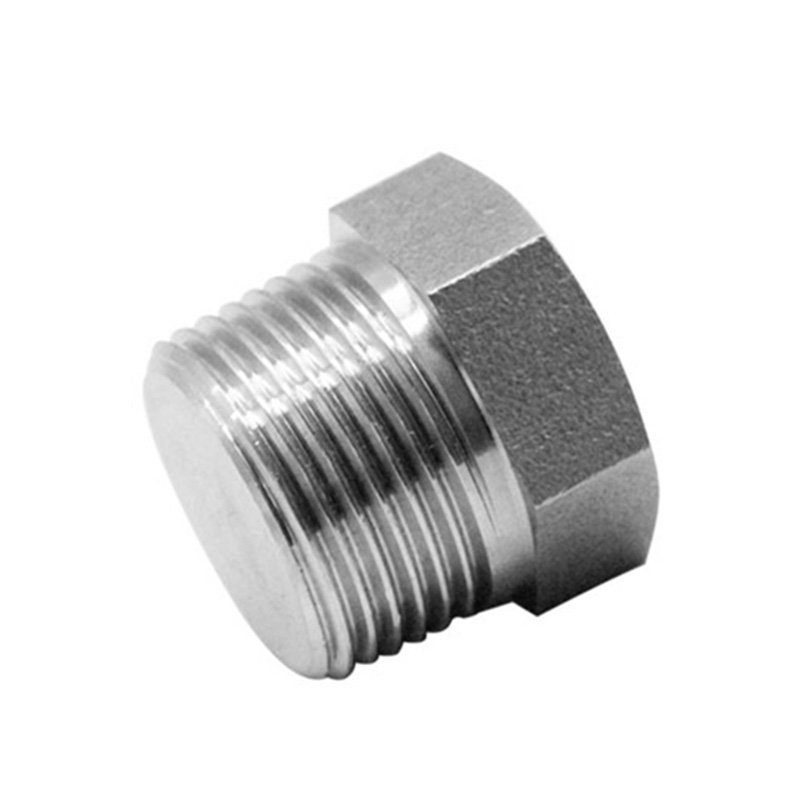

Hexagon Head Plugs
DIN 910, ISO 4762
High torque installation
Standard hex sizes

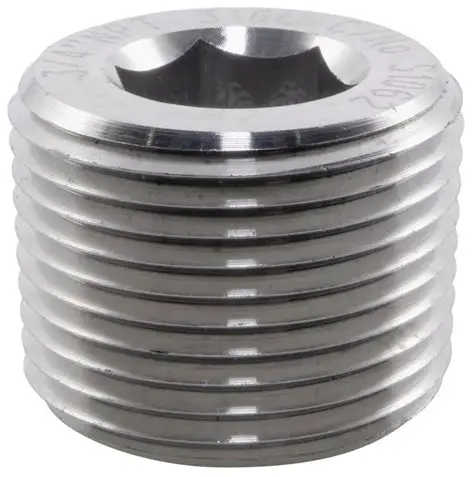

Socket Head Plugs
DIN 908, ISO 4762
Low profile design
Allen key installation

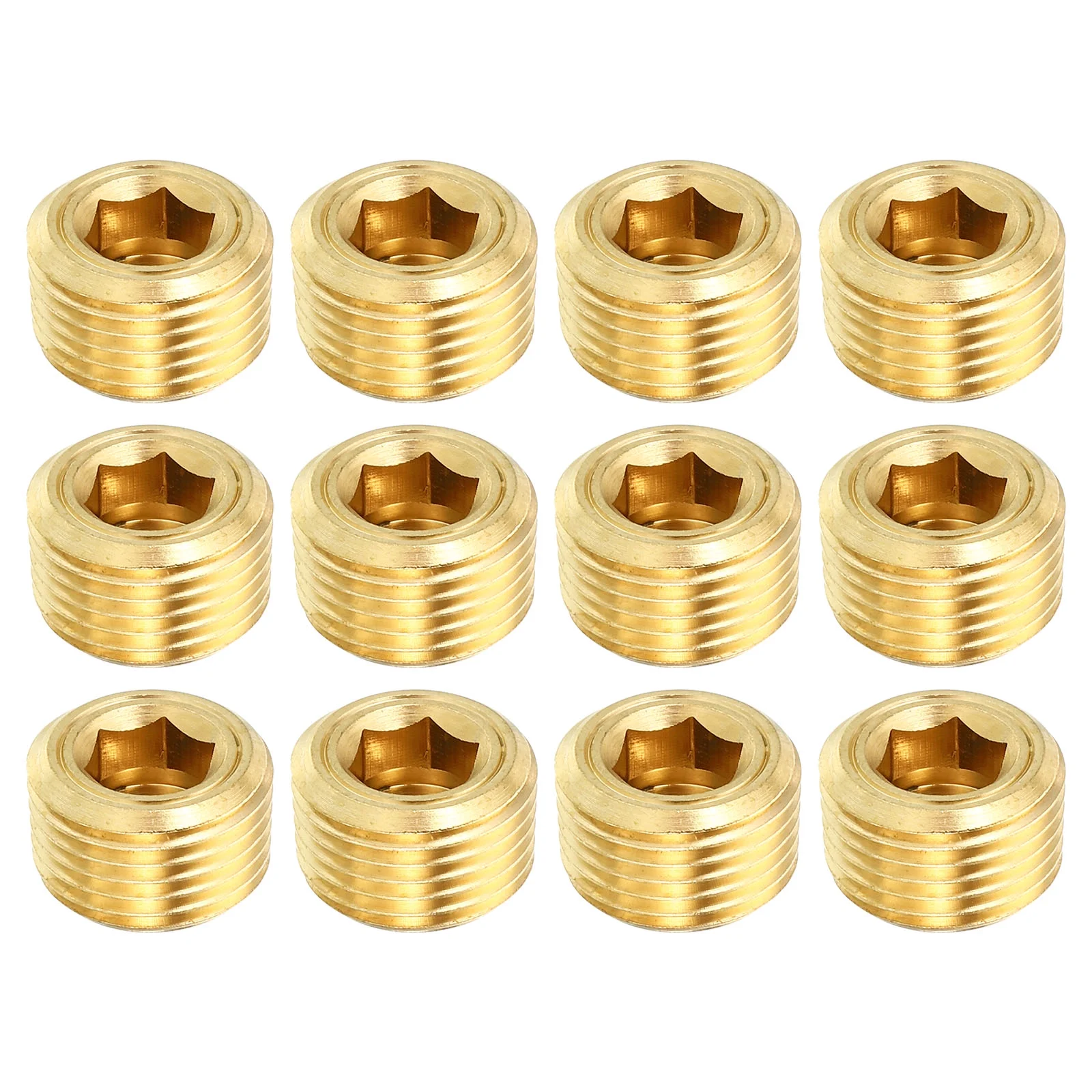

Countersunk Plugs
Flush mounting
90° countersunk head
Smooth surface finish

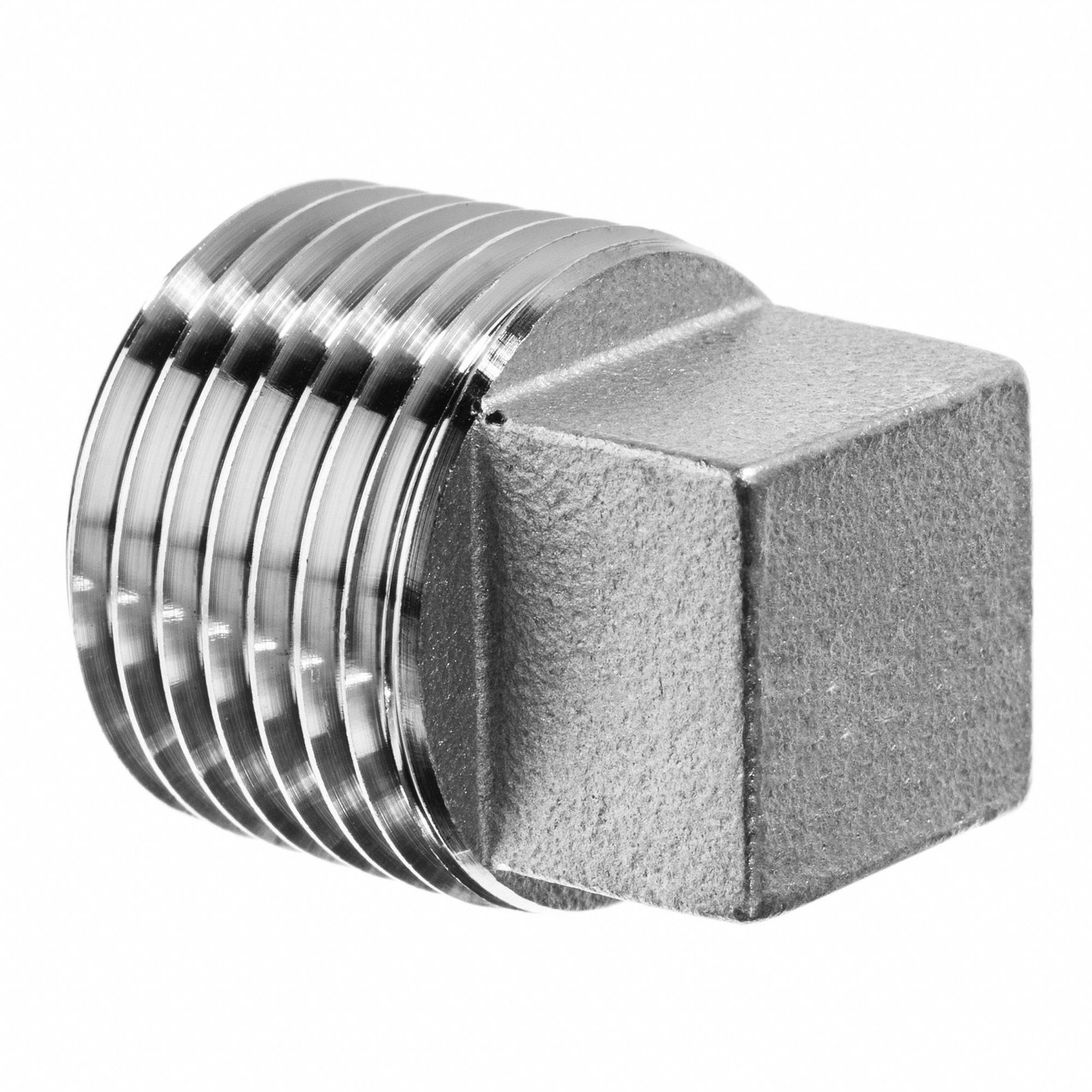

Square Head Plugs
Traditional design
High torque capacity
Industrial applications

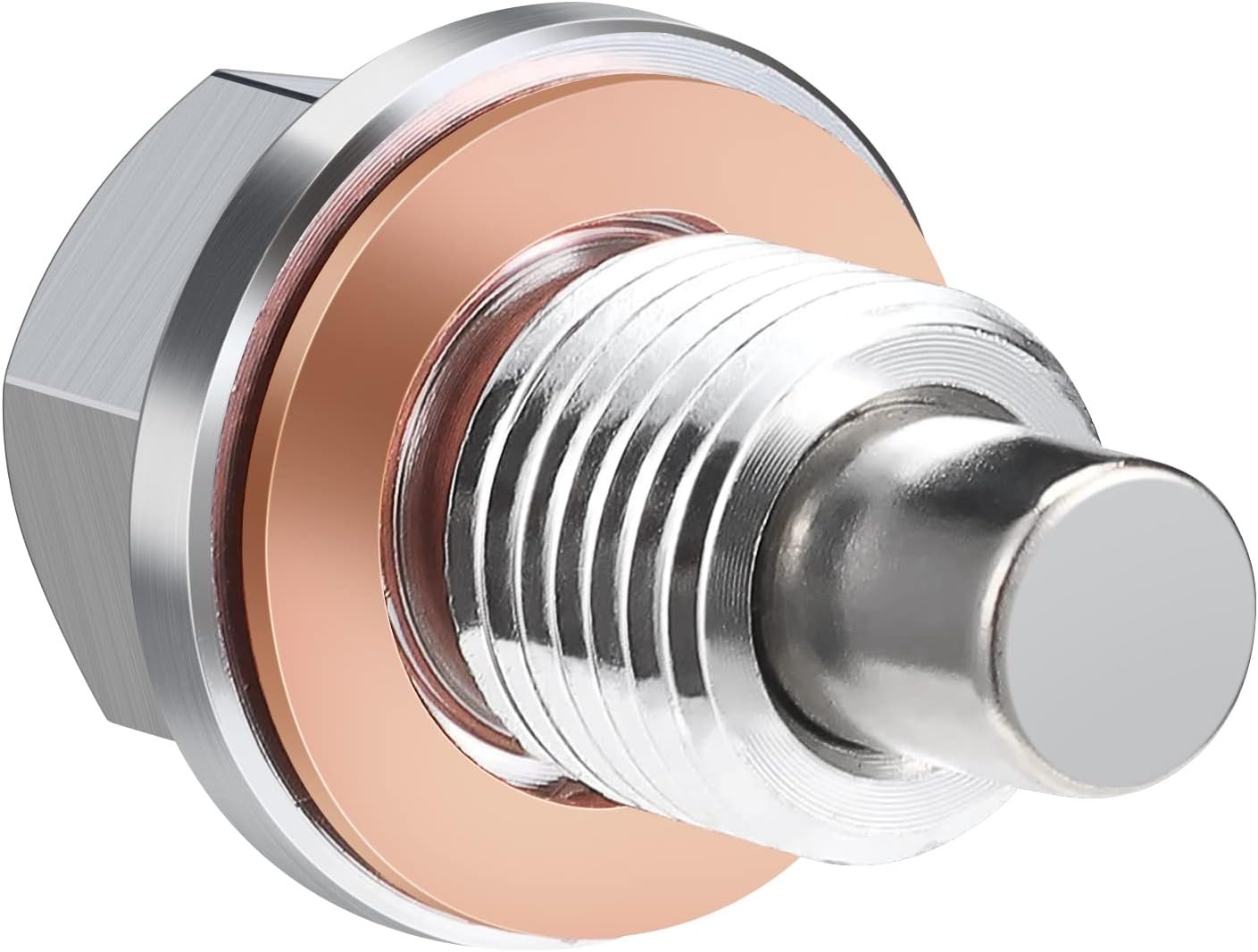

Magnetic Drain Plugs
Metal particle collection
Oil & gear boxes
Maintenance indicator

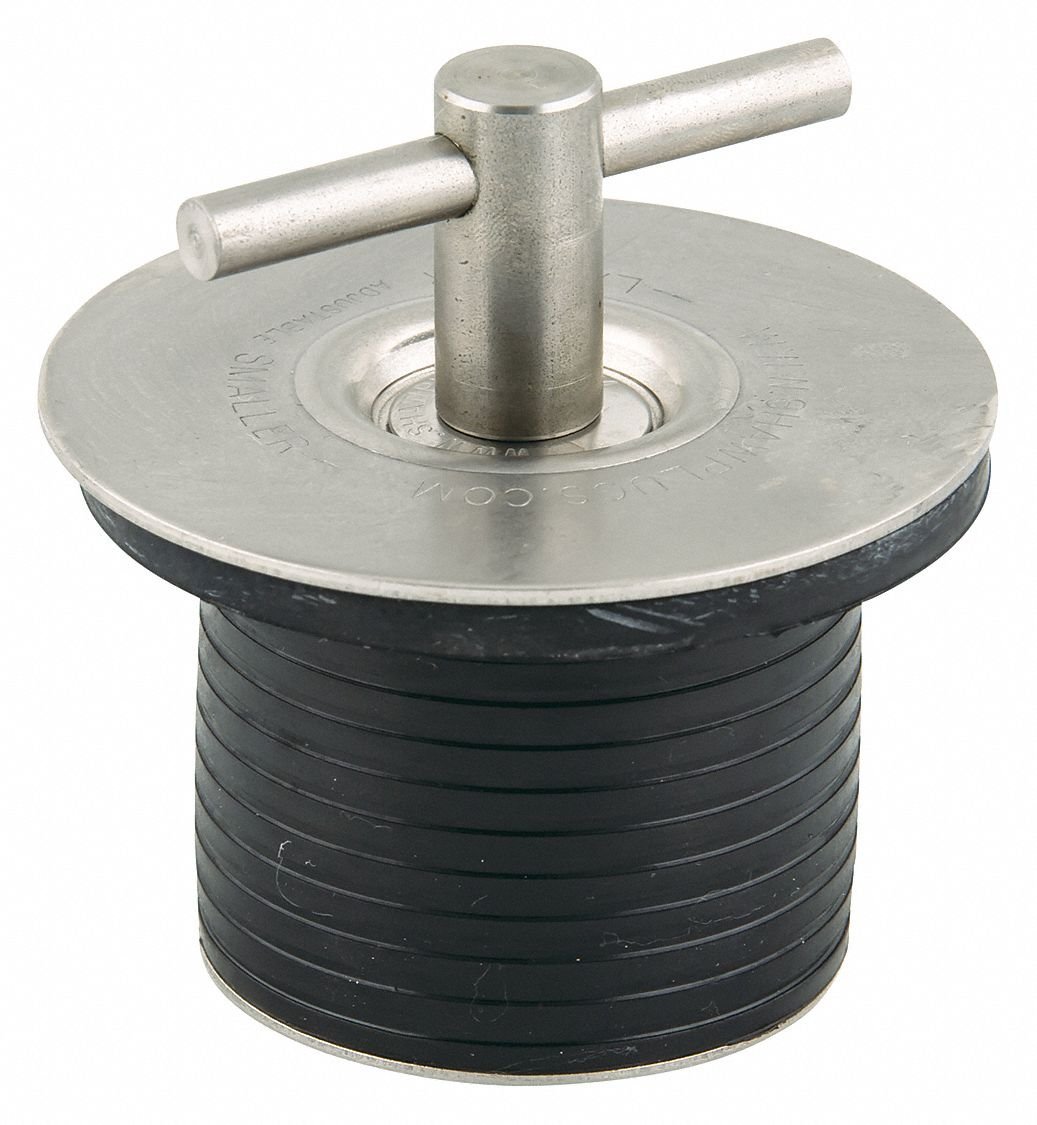

Expansion Plugs
Press-fit installation
Freeze plugs
Engine block sealing
Pipe Plugs
NPT/BSP threads
Pressure sealing
Plumbing applications

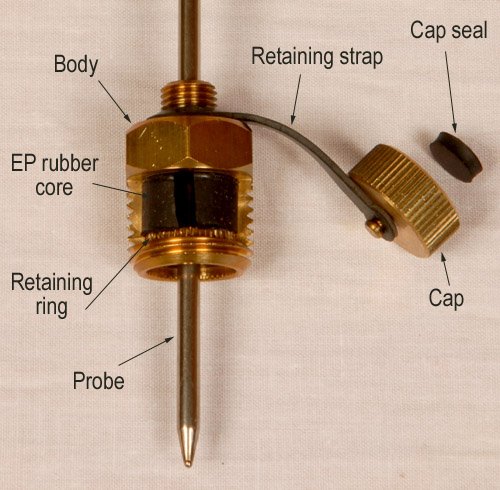

Test Point Plugs
Hydraulic test ports
Quick disconnect
Pressure testing
Threaded Plugs
Metric & imperial threads
Various head styles
Custom configurations
Plug Material Specifications
| Material | Grade | Max Pressure (bar) | Temp Range (°C) | Applications |
|---|---|---|---|---|
| Carbon Steel | C45, 1045 | 400 | -40 to 400 | General hydraulic systems |
| Alloy Steel | ASTM A193 B7 | 600 | -50 to 540 | High pressure systems |
| Stainless Steel 304 | AISI 304 | 350 | -200 to 400 | Corrosive environments, food |
| Stainless Steel 316 | AISI 316 | 400 | -200 to 450 | Marine, chemical processing |
| Brass | CuZn39Pb3 | 200 | -50 to 200 | Plumbing, low pressure |
| Aluminum | 6061-T6 | 150 | -50 to 200 | Lightweight applications |
| Monel 400 | UNS N04400 | 500 | -200 to 400 | Seawater, chemical |
| Inconel 625 | UNS N06625 | 700 | -200 to 980 | Extreme temperature, corrosion |
Standard Specifications
| Type | Standard | Thread Range | Sealing Type | Installation Torque |
|---|---|---|---|---|
| Hex Head Plugs | DIN 910 | M6 - M52 | Steel, Stainless | |
| Socket Head Plugs | DIN 908 | M5 - M64 | Steel, Stainless | |
| Countersunk Plugs | DIN 7604 | M8 - M30 | Steel, Stainless | |
| Square Head Plugs | DIN 906 | M6 - M42 | Steel, Brass | |
| Pipe Plugs | ASME B16.14 | 1/8" - 4" NPT | Steel, Stainless, Brass |
Materials & Properties
Carbon Steel
General purpose, economical, zinc plated available
Stainless Steel 304
Corrosion resistance, food grade, general chemical
Stainless Steel 316
Marine grade, enhanced corrosion resistance
Brass
Plumbing, marine, non-sparking applications
Aluminum
Lightweight, aerospace, automotive applications
Titanium
High strength, corrosion resistance, aerospace
Sealing Performance
| Thread Size | Max Pressure (Steel) | Max Pressure (Stainless) | Temperature Range |
|---|---|---|---|
| M8 x 1.0 | 350 bar | 280 bar | -40°C to 150°C |
| M10 x 1.0 | 315 bar | 250 bar | -40°C to 150°C |
| M12 x 1.5 | 280 bar | 225 bar | -40°C to 150°C |
| M16 x 1.5 | 250 bar | 200 bar | -40°C to 150°C |
| M20 x 1.5 | 210 bar | 170 bar | -40°C to 150°C |
Sealing Methods
Thread Sealant
Anaerobic compounds
PTFE tape
Liquid thread locker
O-Ring Sealing
Machined O-ring grooves
Face seal design
High pressure applications
Metal-to-Metal
Tapered pipe threads
Interference fit
High temperature service
Gasket Sealing
Flat gaskets
Bonded washers
Formed-in-place gaskets
Applications by Industry
Hydraulic Systems
Test ports, drain plugs, pressure line sealing
Automotive
Engine blocks, oil pans, transmission cases
Marine
Through-hull fittings, deck drains, seacocks
Pneumatic
Air lines, manifolds, pressure vessels
Process Industries
Chemical processing, food & beverage, pharmaceutical
Oil & Gas
Wellhead equipment, pipelines, manifolds
Installation Guidelines
Installation Best Practices:
- Thread Preparation: Clean threads, remove debris and old sealant
- Sealant Application: Apply thread sealant per manufacturer instructions
- Torque Requirements: Follow specified torque values for proper sealing
- Inspection: Verify plug is fully seated and properly oriented
- Pressure Testing: Test system at operating pressure before service
Common Torque Values:
- M8: 12-15 Nm (9-11 ft-lbs)
- M10: 20-25 Nm (15-18 ft-lbs)
- M12: 35-42 Nm (26-31 ft-lbs)
- M16: 70-85 Nm (52-63 ft-lbs)
- M20: 120-145 Nm (89-107 ft-lbs)
Special Features
Magnetic Drain Plugs
Neodymium magnets
Metal particle collection
Oil analysis capability
Vented Plugs
Pressure relief
Tank ventilation
Atmospheric equalization
Quick Disconnect
Rapid installation/removal
Test point access
Maintenance friendly
High Pressure
Up to 1000 bar rating
Special materials
Enhanced sealing
Quality & Testing
- Dimensional Inspection: Thread pitch, length, head dimensions
- Material Testing: Chemical analysis, mechanical properties
- Pressure Testing: Hydrostatic and pneumatic testing
- Torque Testing: Installation and break-away torque
- Seal Testing: Leak detection at rated pressure
- Surface Finish: Ra measurements and visual inspection
Custom Solutions
Chaudhary Impex can manufacture custom plugs to meet specific application requirements:
- Special materials and alloys
- Non-standard thread sizes and pitches
- Custom head configurations
- Integrated O-ring sealing
- Magnetic or sensor integration
- Special coatings and surface treatments
- High pressure and temperature ratings
